Soviet and Chinese TMN Series

The metal mine on the left is from Wikipedia but the one on the right is a Chinese non-metallic version and another lifted by Spike Powell and his crew. It is assumed that it was one of these mines that destroyed the truck in which Capt Hugh Jones was travelling.

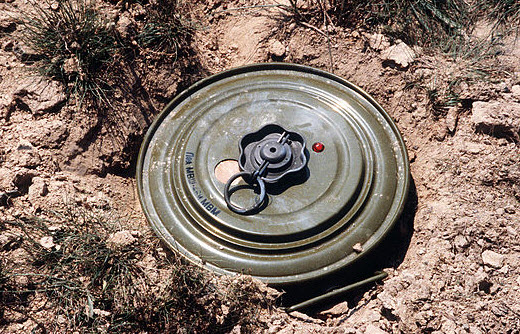

 The TM-46 mine is a large, circular, metal-cased Soviet anti-tank mine. It utilises either a pressure fuze or tilt-rod, which is screwed into the top. Anti-tank mines with this type of fuze were capable of inflicting much more damage to armored vehicles.[1] The TMN-46 is a variant of the mine fitted with a secondary fuze well on the bottom (where it cannot be seen) which is slightly off-set from the centre of the mine. This secondary fuze well can be fitted with a pull-fuze which functions as an anti-handling device. The mine was used by the North Vietnamese forces during the Vietnam War, and is found in many countries in Africa, the Middle East and South East Asia.

 Because the TM-46 has a metal casing, it is very easy to detect with a mine-detector. However, mine-fields containing TM-46s may have also been sown with minimum metal mines, e.g. the PMA-2.

Diameter: 305 mm
Height: 108 mm
Operating pressure: 120–400 kg (21 kg tilt pressure)
Weight: 8.6 kg
Explosive content: 5.7 kg of TNT
Fuzes: MV-5 pressure,MVM pressure, VSh-46 tilt rod.

Diameter: 305 mm
Height: 108 mm
Operating pressure: 120–400 kg (21 kg tilt pressure)
Weight: 8.6 kg
Explosive content: 5.7 kg of TNT
Fuzes: MV-5 pressure,MVM pressure, VSh-46 tilt rod.
